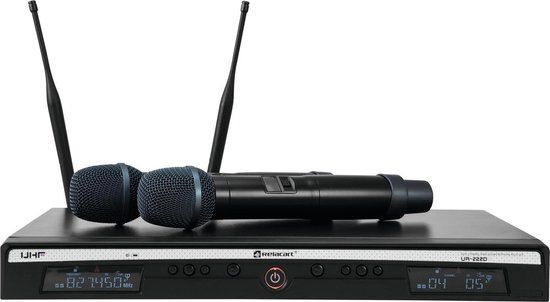

RELACART UR-222D 2-Channel UHF System

True diversity wireless microphone system with two channels, 823-832 MHz + 863-865 MHz

2-channel multifrequency wireless receiver with high-quality true diversity reception
Dynamic hand-held microphones with ergonomic aluminum alloy housing and OLED display, applicable for touring
2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
Parallel operation of up to 9 systems is possible without any interference
Pilot tone technology (PLL) for interference-free reception
Operation range with line of sight approx. 80 meters
Automatic frequency scan (AFS) finds interface-free channels
Easy and error-free synchronization between receiver and transmitter via infrared signal
LCD for battery status of the microphone, antenna A/B, RF reception level, AF audio level and frequency
XLR and 6.3 mm jack output
2 detachable BNC antennas allow for use with the R-14D antenna divider
Delivery includes practical transport bag with jack cable and power unit
Durable metal housing
483 mm rack installation possible with supplied mounting brackets
Microphone directly compatible with Shures SM58 capsule
Matching pocket transmitter UT-222 optionally available
License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
System:
True diversity, 2 channels

Carrier frequency:
UHF 823-832 MHz and 863-865 MHz

Receiving frequencies:
90


10 frequency banks with up to 10 preset frequencies each

Switching bandwidth:
11 MHz

Deviation:
±45 kHz

Frequency stability:
±0.0005 %

T.H.D.:
<0.7 % at 1 kHz

S/N ratio:
>105 dB

Modulation method:
FM

Coverage:
80 m (with line-of-sight)

Frequency range:
45-18000 Hz

Sensitivity:
5 dBµV (S/N >60 dB at 25 deviation)

Audio output:
2 x XLR, bal.


6.3 mm jack, unbal.

Antenna inputs:
2 x BNC (supply 8 V/150 mA)

Power supply:
12 V DC, 1 A


via supplied power unit connected to 100-240 V AC, 50/60 Hz

Power consumption:
6 W

Dimensions:
410 x 46 x 260 mm


Rack installation with 1 U


with supplied mounting brackets

Weight:
1.9 kg

Mircrophone:


Type:
Dynamic

Directivity pattern:
Cardioid

Power supply:
2 x 1.5 V battery (type AA)

Current consumption:
approx. 120 mA

Battery life:
approx. 8 hours

Dimensions:
52 x 255 mm

Weight:
235 g
