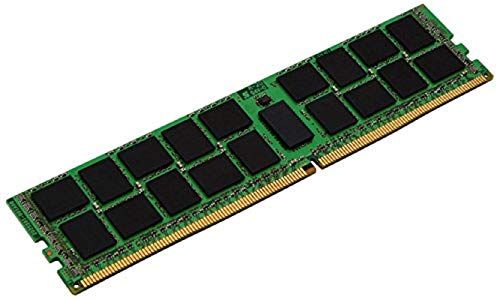

Kingston ValueRAM 8GB DDR4 2400MHz - KVR24E17S8/8I

ValueRAM, Kingston’s industry standard memory, delivers award-winning performance and legendary Kingston reliability. When you know what you want, you want ValueRAM.\n\nValueRAM's KVR24E17S8/8I is a 1G x 72-bit (8GB) DDR4-2400 CL17 SDRAM (Synchronous DRAM), 1Rx8, ECC, Intel® Compatibility Tested, memory module, based on nine 1G x 8-bit\nFBGA components. The SPD is programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers.\n\n- Power Supply: VDD=1.2V Typical\n- VDDQ = 1.2V Typical\n- VPP - 2.5V Typical\n- VDDSPD=2.41V to 2.75V\n- Nominal and dynamic on-die termination (ODT) for\n- data, strobe, and mask signals\n- Low-power auto self refresh (LPASR)\n- Data bus inversion (DBI) for data bus\n- On-die VREFDQ generation and calibration\n- Single-rank\n- On-board I2 serial presence-detect (SPD) EEPROM\n- Temperature sensor with integrated SPD\n- 16 internal banks; 4 groups of 4 banks each\n- Fixed burst chop (BC) of 4 and burst length (BL) of 8\n- via the mode register set (MRS)\n- Selectable BC4 or BL8 on-the-fly (OTF)\n- Fly-by topology\n- Terminated control command and address bus\n- PCB: Height 1.23” (31.25mm)\n- RoHS Compliant and Halogen-Free
