Brodit ProClip - 852597

The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the Proclip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Center mount Attention! Read all instructions before attaching the ProClip
Clean the surface with the enclosed alcohol pad.

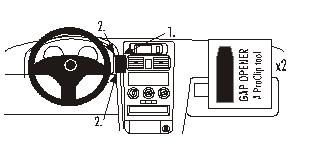

1. Press the enlcosed gap openers into the gap to widen the gap between the dashboard and the frame surrounding the instrument panel. Peel off the adhesive tape cover on the ProClip.

2. Press the right part of the ProClip, with adhesive tape, into the gap at between the control panel and the padded dashboard. Align the ProClip with the air vent.

3. Press the left part of the ProClip, with groove, into the gap between the both gap openers. Press forward and away from the steering wheel so the ProClip snaps into place. Pull out the gap openers.

4. ProClip in place.
