Brodit ProClip 854184

The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Angled mount Please read all of the instructions and look at the pictures before attaching the ProClip.

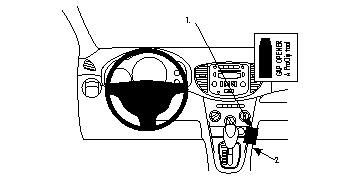

1. Clean the area where the ProClip is to be installed with the enclosed alcohol pad. Press the thin end of the enclosed gap opener into the gap between the control panel and the surrounding frame, to widen the gap. Peel off the adhesive tape covers on the ProClip. Place the ProClip by the center console frame and press the ProClip forward so it hooks on both sides of the frame.

2. Press the ProClip forward so the right side hooks around the center console frame.

3. Press the left side of the ProClip toward the center console frame so the angled edge goes into the gap next to the gap opener. Pull out the gap opener.

4. The ProClip is in place.
