Brodit ProClip 803817

The ProClip is a mounting bracket for the vehicle's dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Left mount Please read all of the instructions and look at the pictures before attaching the ProClip.
It is important to place the ProClip exactly in the same position as shown in the pictures.

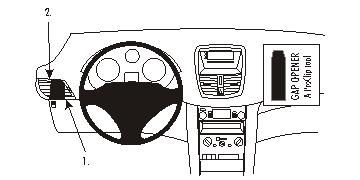

1. Peel off the adhesive tape covers on the ProClip. Place the enclosed gap opener as shown in the picture, below the air vent aligned with the right edge of the air vent, and then place the ProClip directly to the left of the gap opener.

2. Keep the ProClip in that position as you press the thin end of the gap opener into the gap between the frame surrounding the air vent and the dashboard, to widen the gap directly next to the ProClip. Press the angled edge on the lower part of the ProClip into the gap next to the gap opener. Pull out the gap opener.

3. Press the gap opener into the gap between the frame surrounding the air vent and the dashboard. Press forwards on the upper part of the ProClip so the angled upper edge hooks into the gap next to the gap opener. Press downwards on top of the ProClip so the angled edge goes all the way into the gap. Pull out the gap opener.

4. The ProClip is in place.
