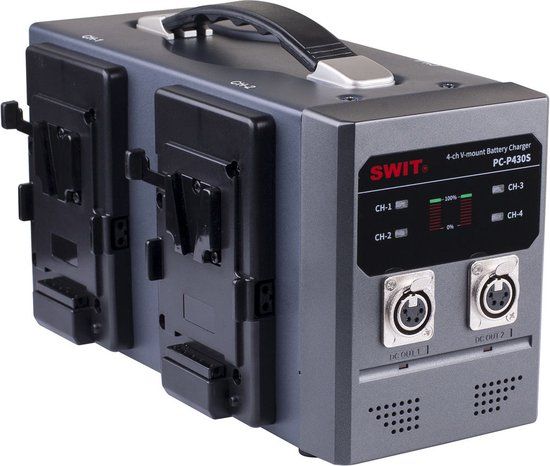

PC-P430S can charge 4pcs V-mount camera batteries simultaneously. The charging output is DC16.8V, 3A each channel.

The PC-P430S has LED charging indicators on the front panel, indicates the real time capacity of each channel by different colors:
Display Red: Battery is charging, capacity below 80%;
Display Yellow: Battery is charging, capacity above 80%;
Display Green: Charging finished.

PC-P430S has 2x 4-pin XLR female connector on the front panel. Connected with SWIT S-7102 XLR female to male cable (optional purchase), the PC-P430S can be used as AC-DC adaptor of 2-ch DC 15V, 6A, 90W simultaneous output.
*Please note the AC-DC adapting output will not work when battery is charging.

Specifications

Power

Max276W

Input

AC100V-240V 50/60Hz

Charging Output

DC 16.8V, 3A×4

Adapting Output

DC 15V, 6A×2

Dimensions

285×144×173mm

Net weight

3.27kg Included in box

• SWIT PC-P430S
