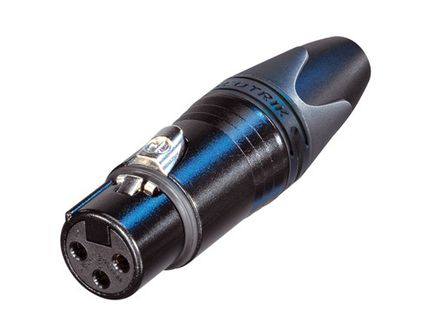

Neutrik NC3FXX-B - XLR Female Connector - Black

3-polige XLR-socket.\nZwarte metalen behuizing en vergulde contacten. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.\n\n\nTECHNICAL DATA\n\nProduct \n• Connector: Type XLR \n• Gender: female \n\nElectrical \n• Capacitance between contacts: ≤ 4 pF \n• Contact resistance: ≤ 3 mΩ \n• Dielectric strength: 1,5 kVdc \n• Insulation resistance: > 2 GΩ (initial) \n• Insulation resistance: > 1 GΩ (after damp heat test) \n• Rated current per contact: 16 A \n• Rated voltage: 50 V \n\nMechanical \n• Cable O.D.: 3.5 - 8.0 mm \n• Insertion force: ≤ 20 N \n• Withdrawal force: ≤ 20 N \n• Lifetime: > 1000 mating cycles \n• Wire size: max. 2.5 mm² \n• Wire size: max. 14 AWG \n• Wiring: Solder contacts \n• Locking device: Latch lock \n\nMaterial \n• Boot: Polyuretan \n• Bushing: Polyamide (PA 6 15% GR) \n• Contact plating: 0.2 µm Au hard alloy over 2 µm Ni \n• Contacts: Bronze (CuSn8) \n• Insert: Polyamide (PA 6.6 30 % GR) \n• Locking element: Zinc diecast (ZnAl4Cu1) \n• Shell: Zinc diecast (ZnAl4Cu1) \n• Shell plating: Black chromium \n• Strain relief: Polyacetal (POM) \n\nEnvironmental \n• Flammability: UL 94 HB \n• Standard compliance: IEC 61076-2-103 \n• Protection: class IP 40 \n• Solderability: Complies with IEC 68-2-20 \n• Temperature range: -30 °C to +80 °C
